Flow Diagrams
sale, preauth and refund

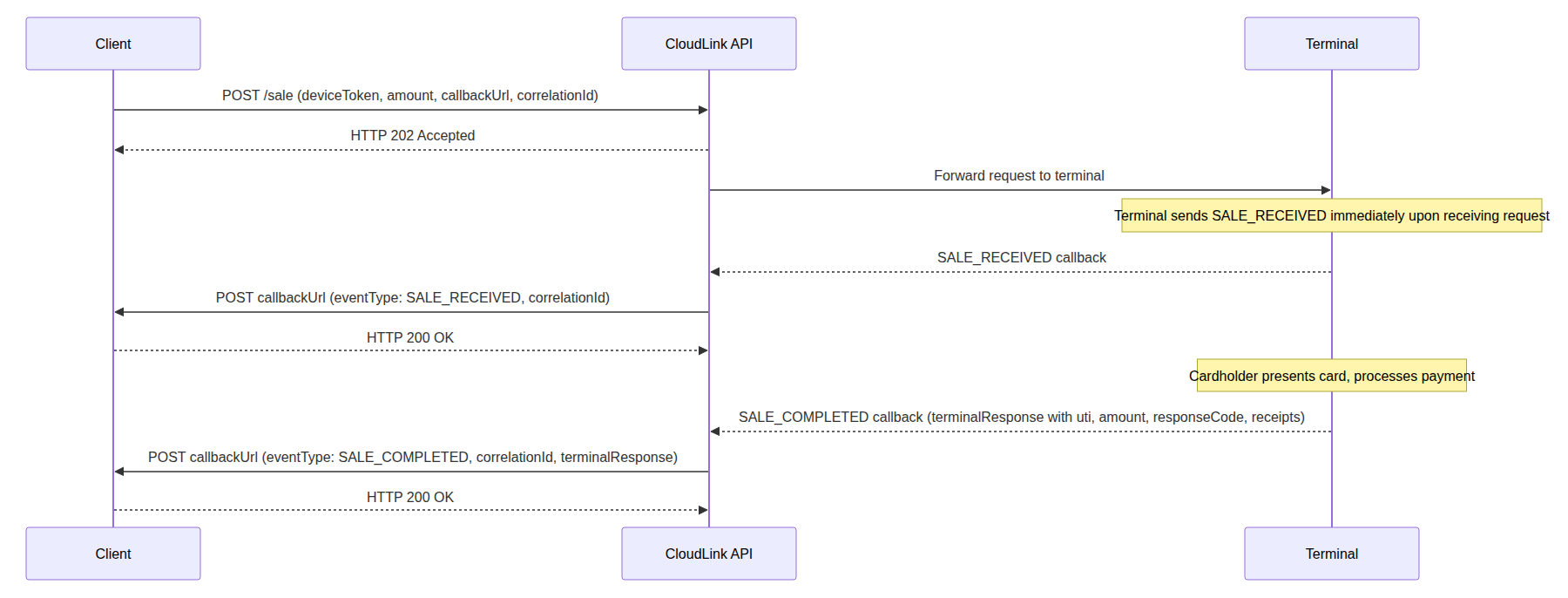

Successful transaction

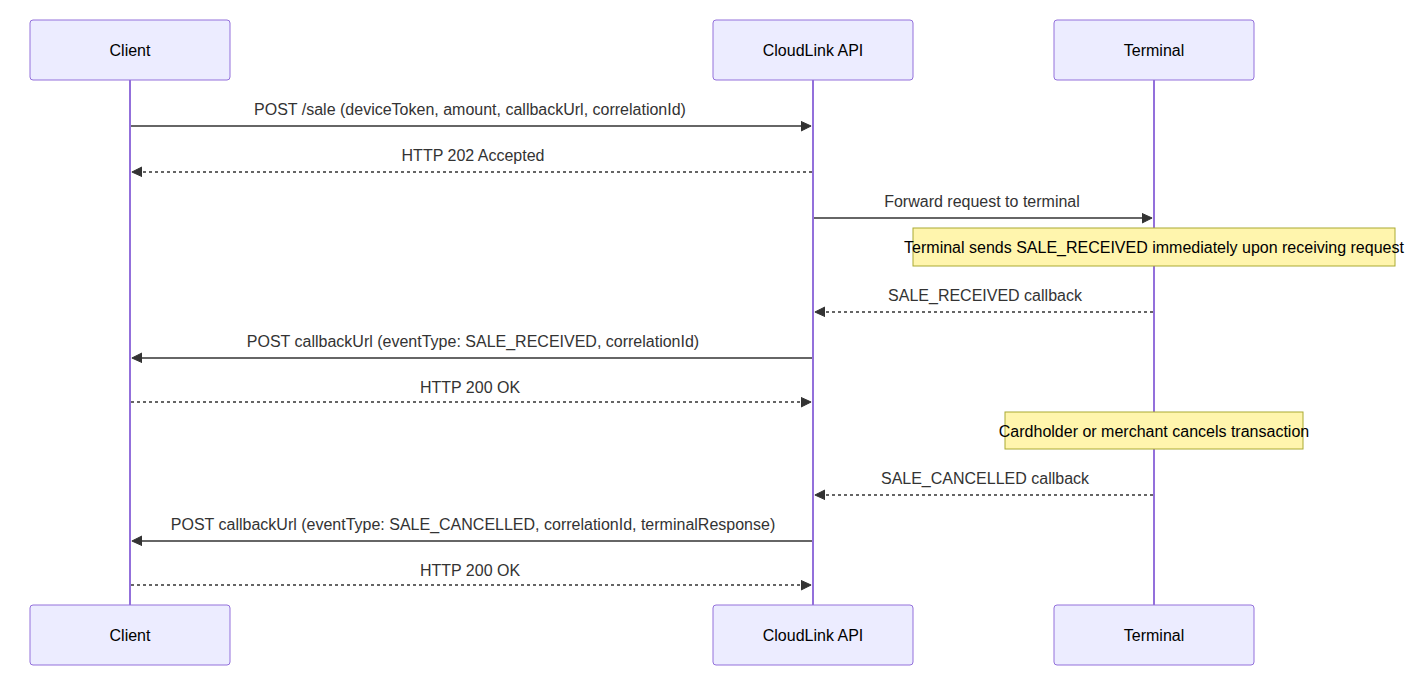

Transaction cancelled by cardholder or merchant
void

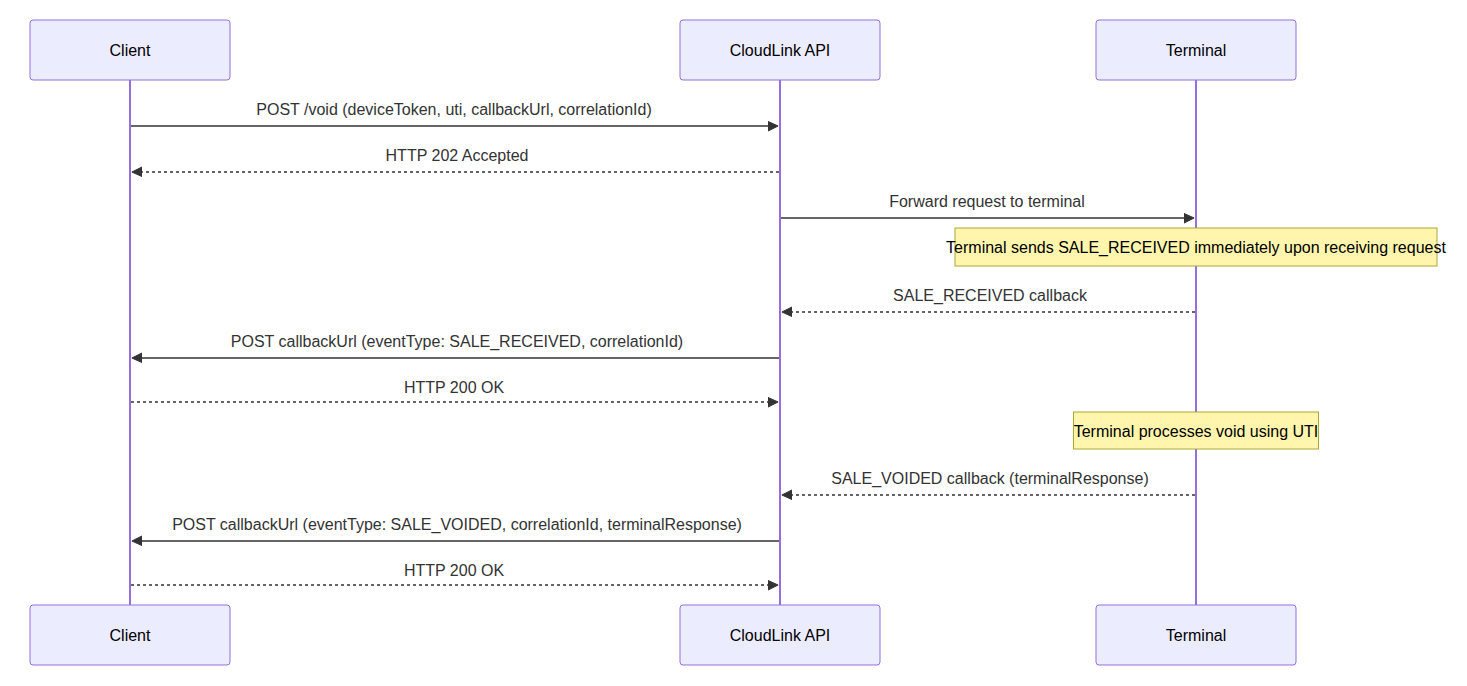

Successful void

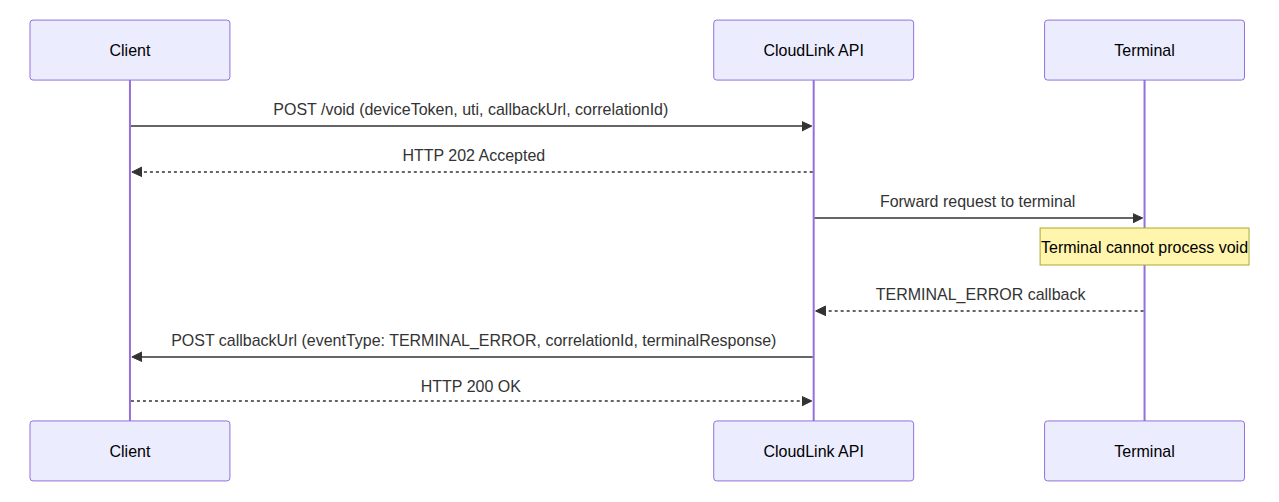

Void not possible

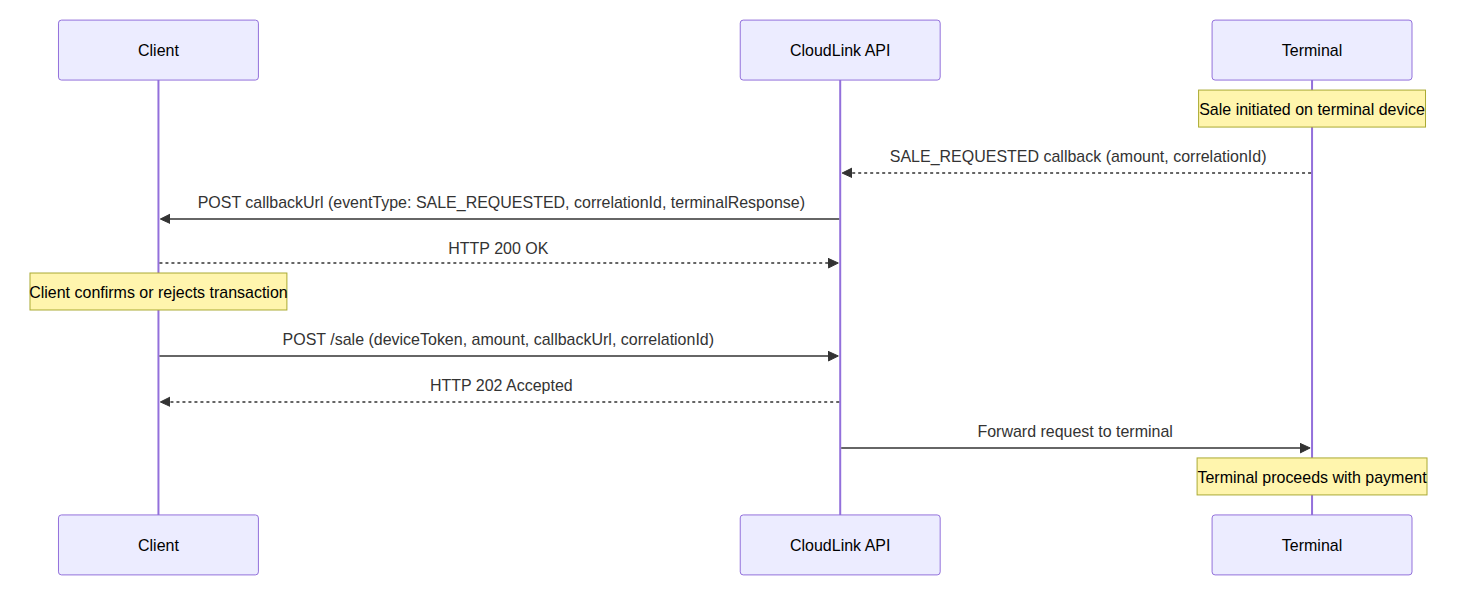

Sale initiated at terminal

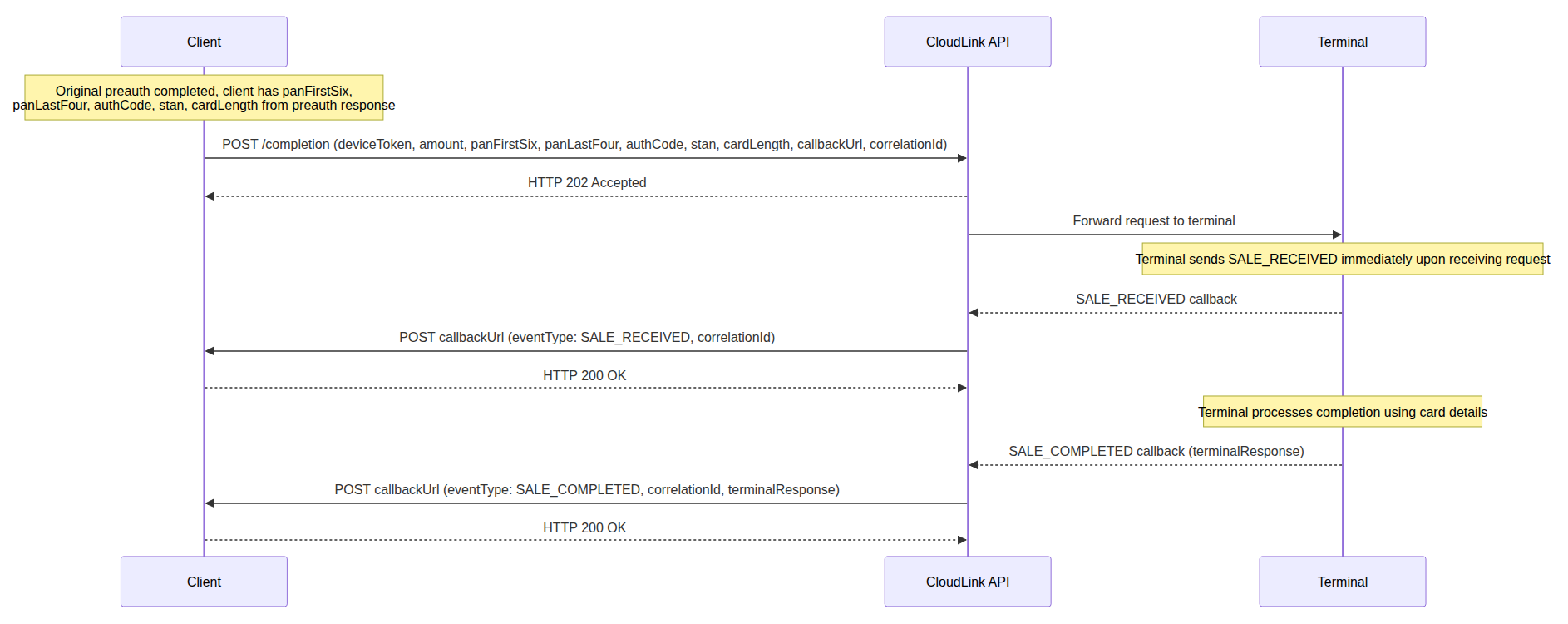

Pre-Auth Completion

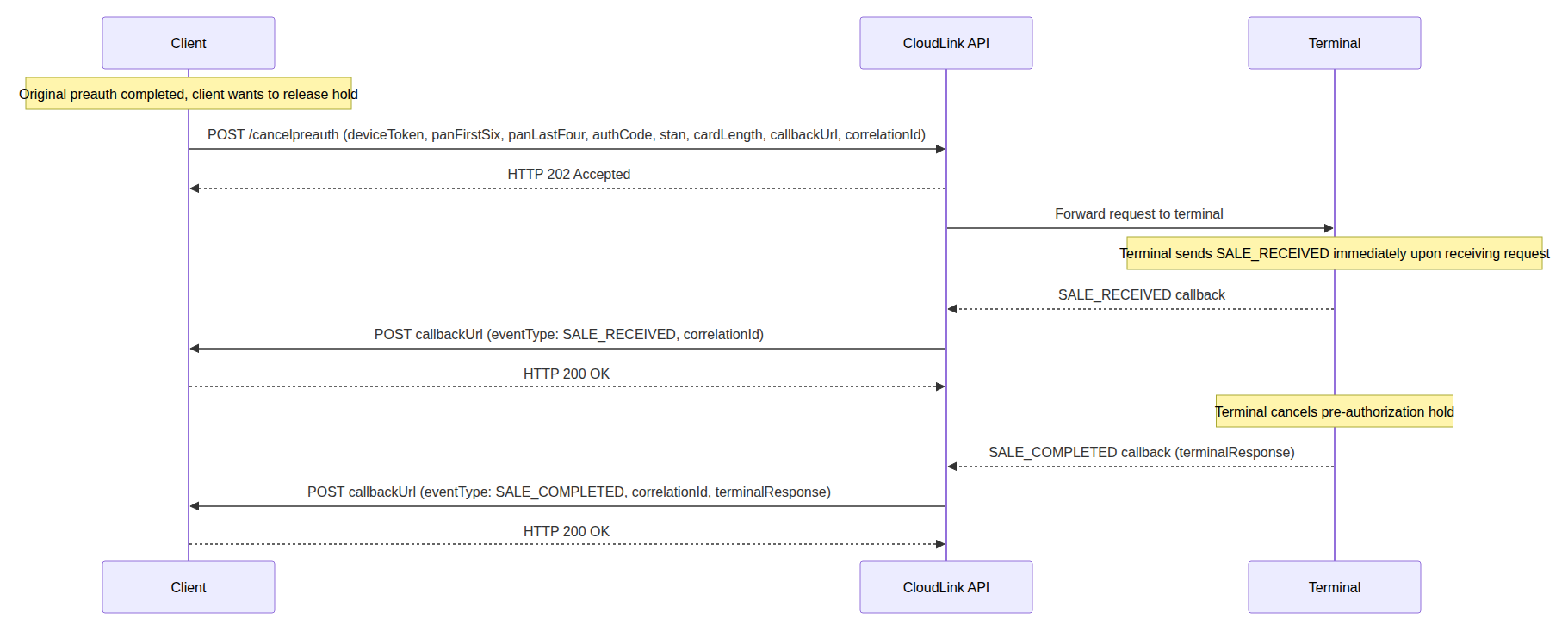

Cancel Pre-Auth

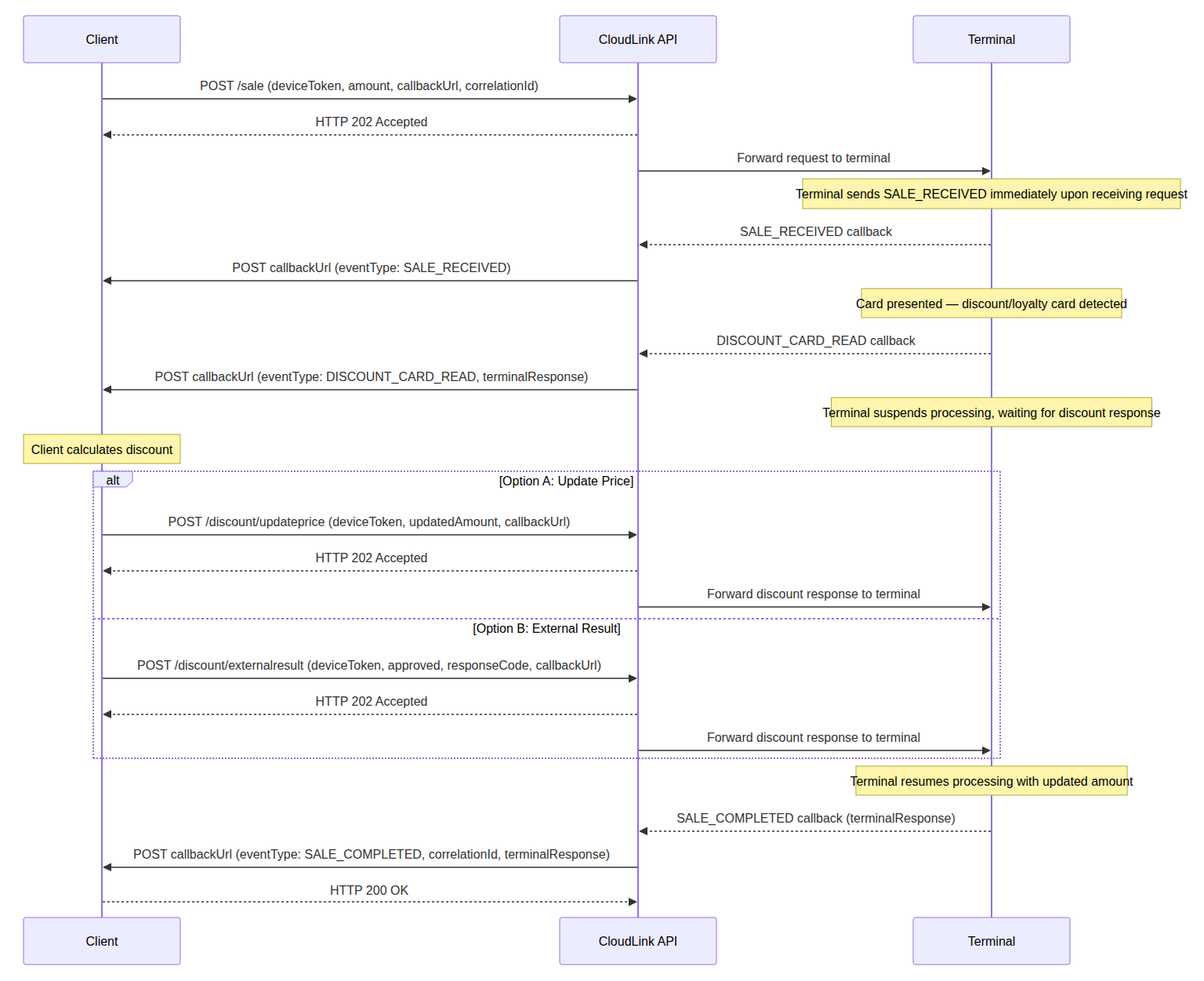

Discount Card Flow

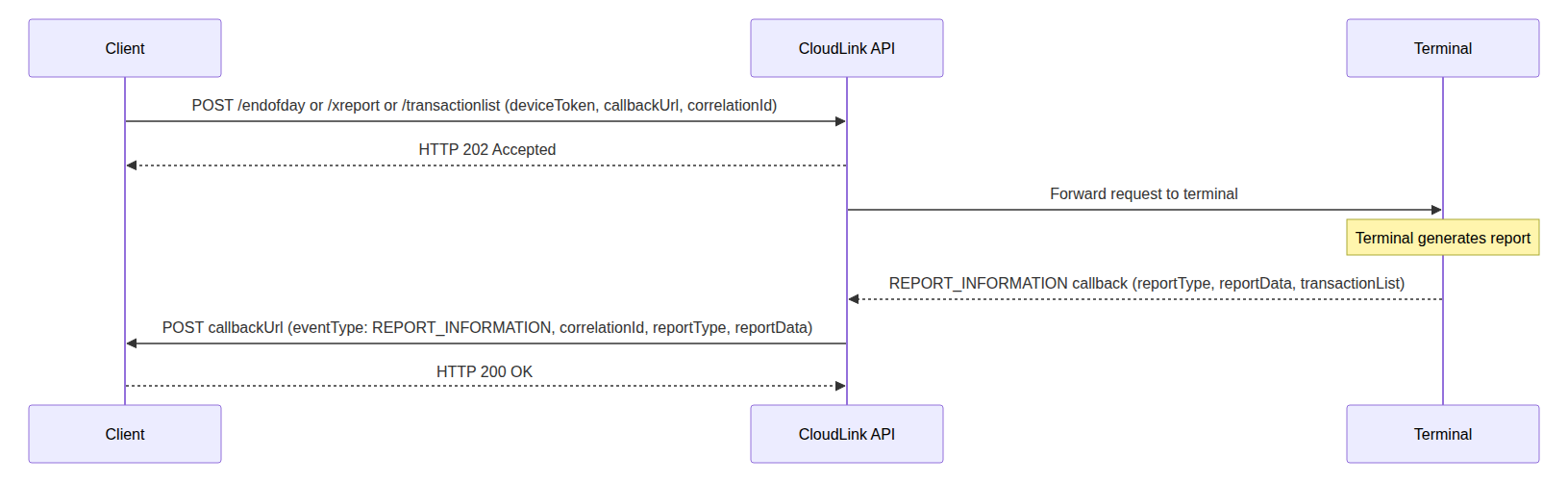

Report Request
