Installing the Paper Roll
Remove and replace the thermal paper roll for receipts.
How
Turn the terminal over to expose its back side.

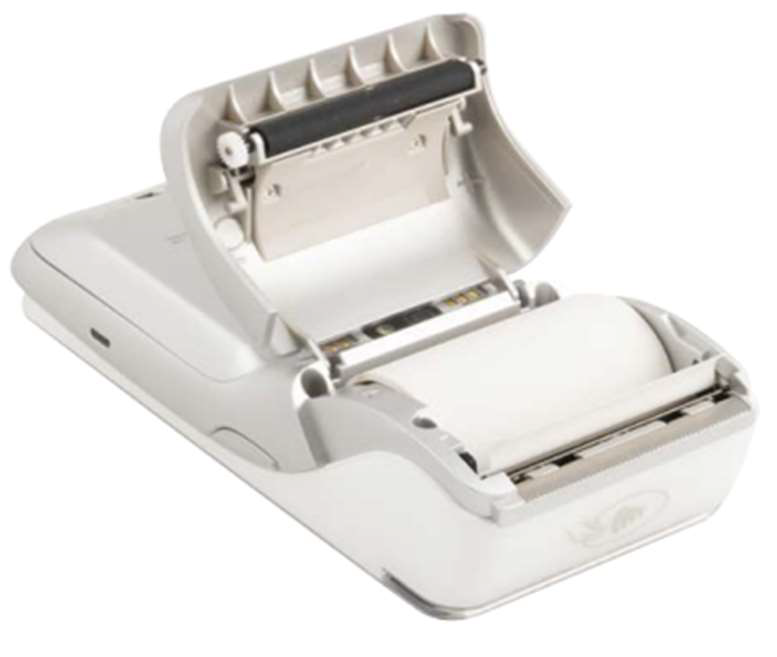

Near the top of the back side of the terminal, place your finger under the paper lid release lever. Pull the entire lid assembly away from the terminal.
If there is a used paper roll inside the unit, lift it out.
To install a new thermal paper roll, drop the paper roll in, with the paper pulling from the back and out the top of the roll.
Pull about 2" of paper out and close the lid until the lid snaps into place. The lid must be fully closed so that the paper roll fully engages the paper. Tear off any excess paper.
