PAX Terminal Technical Specifications
Hardware characteristics of the PAX terminals.
PAX A35
Designed for connections to ECR systems.
Specifications:
Operating system: Android 10.0
Battery: None
Display: 4 inches color touch screen (480 x 800)
Comms: Wi-Fi + Ethernet + USB2 + Bluetooth (optional)
Cameras: 0.3MP front
GPS: No
Physical: 163.69 x 76.90 x 30.10mm (L x W x H) | 260 g
Charging: Connected to electricity
Printer: None
PAX A50
This is the smallest terminal in the fleet, the size of an iPhone 8.
This terminal takes care of everything itself, has 4G and Wi-Fi.
The terminal cannot print but can send receipts instead via email.
The terminal can also show all receipts on the screen.
It does not have a magnetic stripe reader (for gift cards as an example).
Specifications:
Operating system: Android 8.1 or 10.0
Battery: 3.8V, 2500 mAh
Display: 4.5 inches IPS color touch screen (720 x 1280)
Comms: 4G + Wi-Fi + Bluetooth 4.0
Cameras: 2MP under with a fixed focus
GPS: Yes
Physical: 138 x 69.5 x 12 mm | 163 g
Charging: USB-C
Printer: No printer
Other:
Unable to read magnetic stripe
Can send a receipt by email
Enter PIN on the touch screen
Separate button to scan bar codes with the camera
Automatically switches between Wi-Fi and 4G
PAX A77
This one is slightly larger than the A50 and has more features.
This terminal takes care of everything itself, has 4G and Wi-Fi.
The terminal cannot print but can send receipts instead via email.
The terminal can also show all receipts on the screen.
It has a magnetic stripe reader beyond the A50.
Has a multi-line bar code reader that is activated with a button on the side.
Specifications:
Operating system: Android 8.1 or 10.0
Battery: 5150mAh | 3.8V
Display: 5.5 inches color touch screen (720 x 1440)
Comms: 4G + Wi-Fi + Bluetooth
Cameras: 2MP front & 5MP rear
GPS: Yes
Physical: 158.8 x 76.4 x 17.8 mm | 240 g
Charging: USB-C
Printer: No printer
Other:
Multi-line bar code reader
Can send a receipt by email
Enter the PIN on the touch screen
Headphone jack
Automatically switches between Wi-Fi and 4G
PAX A80
This one is designed to sit on a table or in a mount.
This is a workhorse that is quick to print.
It needs to be connected to electricity and can use both an internet cable or Wi-Fi.
The terminal can also show all receipts on the screen.
Specifications:
Operating system: Android 6.0 or 10.0
Battery: No battery
Display: 4 inches color touch screen (480 x 800)
Comms: Wi-Fi + Bluetooth + Ethernet
Cameras: No camera
GPS: Yes
Physical: 181 x 84 x 81 mm | 405 g
Charging: Connected to electricity
Printer: 50 lines/sec
Other:
Keyboard
PAX A920
This is the most popular terminal, all in one package.
Can read all cards and also print.
Uses 4G and Wi-Fi.
Available with a charging station.
The terminal can also show all receipts on the screen.
Specifications:
Operating system: Android 7.1
Battery: 5250mAh | 3.7V
Display: 5 inches color touch screen (720 x 1280)
Comms: 4G + Wi-Fi
Cameras: 5MP rear and 0.3MP front
GPS: Yes
Physical: 175.7 x 78 x 57 mm | 458 g
Charging: USB-C
Printer: 40 lines/sec
Other:
Enter the PIN on the touch screen
Available with charging station
Automatically switches between Wi-Fi and 4G
PAX A920Pro
This is all in one package.
Can do the same as the A920 but has also a multi-line barcode scanner to the front of the terminal which is activated with a button on the side.
Specifications:
Operating system: Android 8.1 or 10.0
Battery: 5150mAh | 3.7V
Display: 5.5 inches color touch screen (720 x 1440)
Comms: 4G + Wi-Fi + Bluetooth
Cameras: 5MP rear
GPS: Yes
Physical: 178.3 x 78 x 54.2 mm | 390 g
Charging: USB-C
Printer: 40 lines/sec
Other:
Enter the PIN on the touch screen
Multi-line bar code reader
Automatically switches between Wi-Fi and 4G
PAX A960
This one is slightly larger than A920Pro.
Chip reader on the side.
It has a multi-line barcode reader that is activated with a button on the side.
Specifications:
Operating system: Android 12.0
Battery: 5150mAh | 3.7V
Display: 6.0 inches color touch screen
Comms: 4G + Wi-Fi + Bluetooth
Cameras: 0.3MP front & 5MP rear
GPS: Yes
Physical: 211.5 x 81 x 52.9 mm | 368 g
Charging: USB-C
Printer: 80mm/sec
Other:
Multi-line bar code reader
Can send a receipt by email
Enter the PIN on the touch screen
Headphone jack
Automatically switches between Wi-Fi and 4G
20% lighter than the A920
PAX A6650
This is a rugged PDA that is IP67 certified.
Uses 4G and Wi-Fi.
This device has no printer.
Specifications:
Operating system: Android 12
Battery: 5400mAh | 3.8V
Display: 6.5-inch IPS LCD, multi-touch AF, (1600 x 720)
Comms: 4G + Wi-Fi
Cameras: Front camera: 5MP FF, dual rear cameras: 13MP AF + 2MP AF
GPS: Yes
Physical: 172 x 81 x 16.5 mm | 372 g
Charging: USB-C
Other:
IP Rating: IP67, Dropping: 1.5M
Wristband
Enter the PIN on the touch screen
Automatically switches between Wi-Fi and 4G

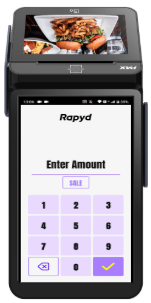

PAX A8700
Bigger terminal with a paper cutter.
Specifications:
Operating system: Android 11
Display: 7.0 inches color touch screen (1280 x 800)
Secondary: 4’’ capacitive touch screen 480 x 800 pixels
Comms: LAN, Wi-Fi, and Bluetooth
Cameras: 2MP fixed-focus camera
GPS: No
Charging: 24V, 2.7A
Printer: 200 lines/sec, automatic cutter
PAX A8900
This device is packed with features with a smaller price tag.
This is a workhorse that is quick to print.
The terminal can also show all receipts on the screen.
Specifications:
Operating system: Android 12.0
Battery: 5100mAh | 3.6V
Display: 5.5" 720 x 1440 pixels
Comms: Wi-Fi + 4G
Cameras: 2MP rear-facing, optional: 2MP front-facing
GPS: Yes
Physical: 185 x 79 x 58 mm
Charging: USB-C
Printer: High-speed thermal printer
PAX IM25
Self-service terminal.
Contactless only terminal.
Specifications:
Operating system: Android 10.0
Display: 3.5 TFT (480 x 320)
Comms: LAN + Wi-Fi + Bluetooth (4G optional)
Cameras: 2.0 MP front
GPS: No
Physical: 108 x 75 x 43 mm | Cutout: 73 x 61 mm (EVA Version)
Charging: Connected to electricity
Printer: No printer
Other:
Water and dust protection (IP65 | IK09)
Operates down to -20°C
Enter the PIN on the touchscreen
Supports low voltage pulse
PAX IM30
Self-service terminal.
Terminal designed for self-service. Has great features with a camera, barcode reader and 5-inch touch screen
Specifications:
Operating system: Android 7.1 or 10.0
Battery: None
Display: 5 inches color touch screen (720 x 1280)
Comms: 4G + Wi-Fi + Bluetooth + IP or Wi-Fi + Bluetooth + IP
Cameras: 2MP front
GPS: No
Physical: 46 x 105 x 57 mm | 486 g
Charging: Connected to electricity
Printer: No printer
Other:
Water and dust protection (IP55 I IK08 standard)
Operates down to -20°C
Enter the PIN on the touchscreen
Bar code reader
Supports low voltage pulse
